Impacts

IR ILA582A1-68

CAP SCREW

MPT 4940A2

Impact Straight 1 in. Sq. Drive OT

SUM NSA-1131

Letter Stamp

SUM POWR15-9/16

Auto Shut Off Air Open End Wrench, 9/16in, 6-15Nm

SUM ST-5830P

Impact Wrench, 1 Inch Square Drive, Super Duty, Twin Hammer

U UT8070R-1

3/8" Pistol Impact Wrench

U UT8642C

1" D Handle Impact Wrench

U UT8642CL

1" D Handle Impact Wrench With 8" Ext Anvil

IR 131K-LA

1/2" Air Impact Wrench 4 Socket Set, 600 ft-lb

Includes: 131S 1/2" Air Impact, 4 Sockets (11/16", 3/4", 13/16", 7/8"), Carrying Case
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1150
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Exhaust Location: Bottom
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Free Speed (rpm): 8000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 600
Max Torque (in-lb): 7196
Max Torque (nm): 813
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Product Length (in): 7.3
Product Width (in): 2.75
Product Height (in): 7.9
Product Weight (lb): 5.8
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 25-300
Recommended Forward Torque Range (in-lb): 301-3602
Recommended Forward Torque Range (nm): 34-407
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Tool Type: Full-size
Vanes: 6
Warranty: 1-year

IR 1720P3

1" Air Impact Wrench, Heavy Duty, 1100 ft-lb Torque, Thru-hole Retainer, Pistol

The 1720 Series Impact Wrench features a jumbo hammer impact mechanism with an optimized power-to-weight ratio. Paired with its steel hammer case and metal housing, this tool is ready for even the toughest jobs.

Features And Benefits

• Different Trigger Styles Available: Featuring both trigger and butterfly actuation, this tool is ready for anything.
• Durability: Ingersoll Rand has built the 1720 Series Impact Wrench to last. Even through frequent dropping and harsh environments, this tool is reliable from its first use to its last.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1132
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1000
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.5 / 111.5
Hammer Case: Steel
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.5 / 109.5
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 8
Product Length (in): 7.63
Product Width (in): 11.4
Product Height (in): 5
Product Weight (lb): 12.54
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 251-749
Recommended Forward Torque Range (in-lb): 3009-8992
Recommended Forward Torque Range (nm): 340 - 1016
Retainer Type: Thru-hole
Side to Center Distance (in): 5.7
Side to Center Distance (mm): 145
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 13.2
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year

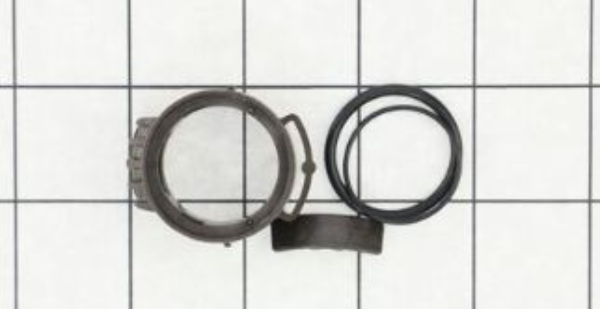

IR 2015-K329

REVERSE VALVE KIT

IR 2101KA

1/4" Mini Air Impact Wrench Kit, 55 ft-lb Torque, Friction Ring Retainer, Pistol

Despite its small size, this Mini Impact Wrench packs a punch. Thanks to its rocking dog impact mechanism and finely tuned vane motor, this wrench is as compact as it is powerful.

Features And Benefits

• Access: Thanks to its small size, this wrench can fit in even the toughest to reach spaces.
• Reliability: These parts will stand the test of time. The rocking dog impact mechanism is easy to maintain, and delivers a powerful burst with low air needs.
• Increased Productivity: The less time you have to worry about changing parts, the more time you have to work.
• 1-year warranty

Includes: 2101XPA Mini Impact Wrench and set of 10 Standard Sockets
Product Application and Uses: Designed to remove and install threaded fasteners. Optimized for the vehicle repair industry, body shops, and MRO
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 13.5
Average Air Consumption (l/min): 382
Blows per Min: 3650
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/4
Drive Type: Square
Duty Rating: General Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 83.5 / 94.5
Hammer Case: Steel
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Rocking Dog
Impacting Sound Pressure/Power Db(A): 84.9 / 95.9
Max Bolt Diameter (in): M5
Max Free Speed (rpm): 14500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 55
Max Torque (in-lb): 664
Max Torque (nm): 75
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 6.9
Product Width (in): 1.7
Product Height (in): 5.9
Product Weight (lb): 1.5
Recommended Forward Torque Range (ft-lb): 50
Recommended Forward Torque Range (in-lb): 602
Recommended Forward Torque Range (nm): 68
Retainer Type: Friction Ring
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Compact
Vanes: 5
Vibration Level (m/s2): 3
Warranty: 1-year

Similar IR

• 2101XPA
• 2102XPA

IR 2101XPA-724-2

HAMMER DOGS (2)

IR 2101XPA-A302

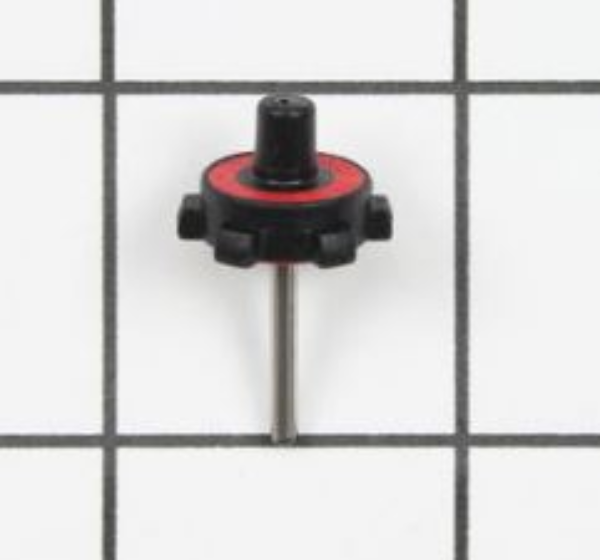

VALVE

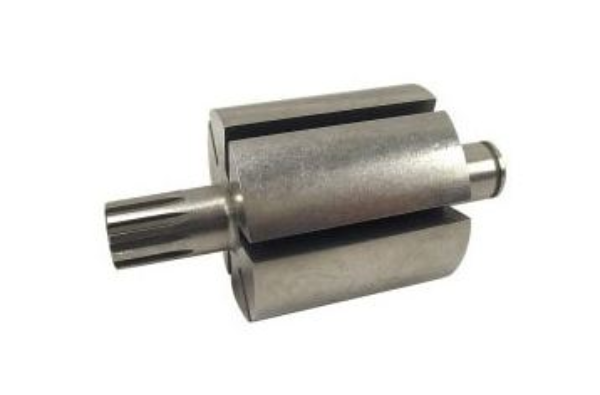

IR 2112-53

ROTOR

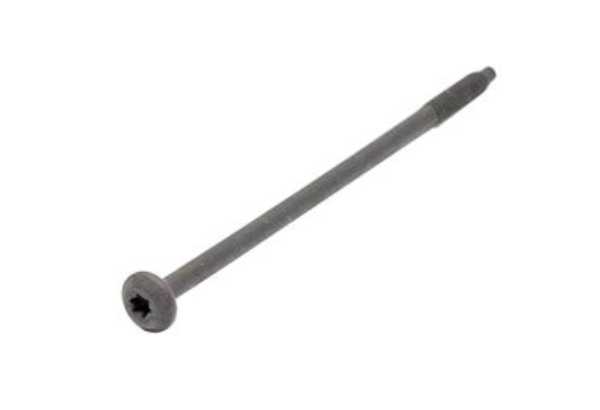

IR 2112-638

SCREW

IR 2112-A40

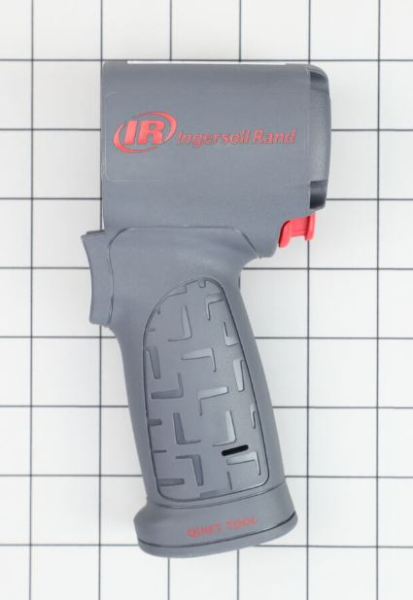

HOUSING ASSEMBLY

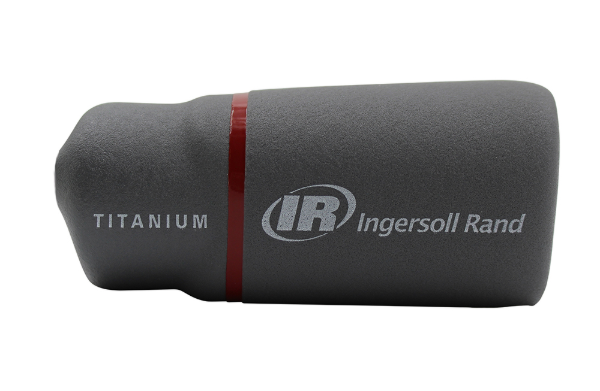

IR 2115M-BOOT

Protective Boot for Ingersoll Rand 2115 Series Impact Wrench

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Color: Grey

For Use With

• 2115PTIMAX
• 2115QTIMAX
• 2115QTIMAX-AP
• 2115TIMAX
• 2125PTIMAX
• 2125QTIMAX

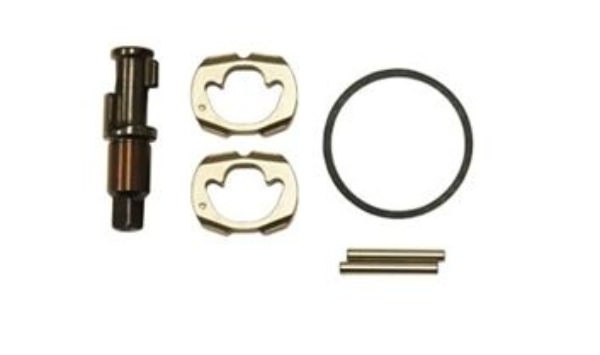

IR 2115PTI-THK1

HAMMER KIT

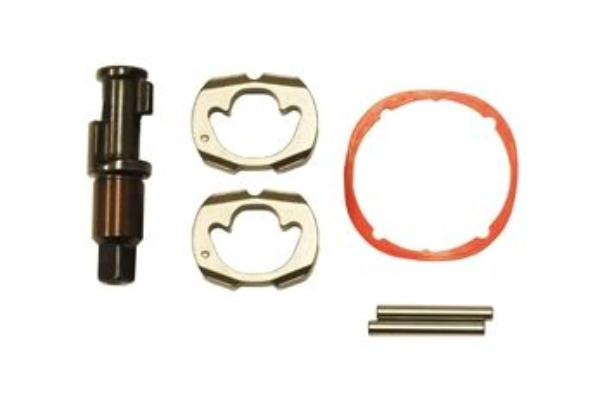

IR 2115-THK1

HAMMER KIT

IR 2115-TK1

Tune-up Kit for Ingersoll Rand 2115 Series Impact Wrench

For Use With

• 2115PTIMAX
• 2115QTIMAX
• 2125PTIMAX
• 2125QTIMAX

IR 2125QTIMAX-A40

HOUSING ASSEMBLY

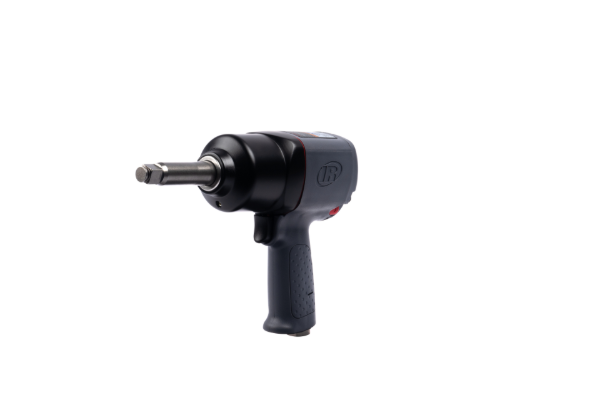

IR 2130-2

1/2" Air Impact Wrench, 2" Ext Anvil, Heavy Duty, 550 ft-lb Torque, Friction Ring Retainer, Pistol

Reliable and durable, this 2130 Series Impact Wrench was built to help you succeed. From your first to your last job, this wrench will see you through.

Features And Benefits

• Performance: Features a twin hammer impact mechanism, 1200 blows per minute, 9500 rpm, 550 ft.-lbs. of max reverse torque and 350 ft.-lbs. of forward torque.
• Uses: This impact wrench is great for changing tires and general vehicle repair.
• Durability: Thanks to its steel hammer case and composite housing, this wrench will endure anything, from repeated drops to harsh chemicals. It’ll never let you down.
• Extended Reach: The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.

Product Application and Uses: This impact wrench is great for changing tires and general vehicle repair.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 22
Air Consumption @ Load (l/min): 623
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: 2" Extended
Average Air Consumption (cfm): 4.4
Average Air Consumption (l/min): 125
Blows per Min: 1200
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 89.8 / 100.8
Hammer Case: Steel
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.5 / 105.5
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 9500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 549
Max Torque (in-lb): 6594
Max Torque (nm): 745
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 9.25
Product Width (in): 2.8
Product Height (in): 7.2
Product Weight (lb): 4.6
Recommended Forward Torque Range (ft-lb): 25-350
Recommended Forward Torque Range (in-lb): 301-4195
Recommended Forward Torque Range (nm): 34-474
Retainer Type: Friction Ring
Side to Center Distance (in): 1.41
Side to Center Distance (mm): 36
Special Features: Extended anvil
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.7
Warranty: 1-year

Similar IR

• 2130

IR 2130-IMK1

IMPACT MECHANISM KIT

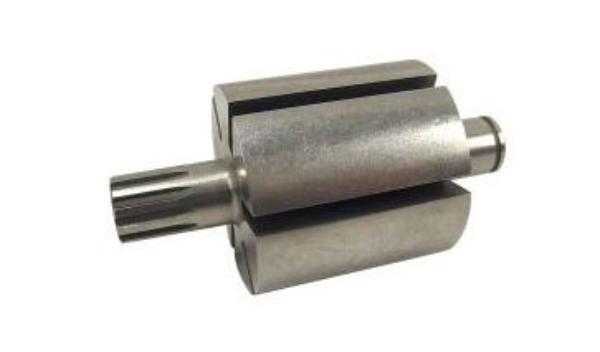

IR 2131-53

ROTOR
